GSE Integration – Ground Mount System

Product Code GSE-GM Rexel Code 7004213-7004233 Category Mounting

Product Details.

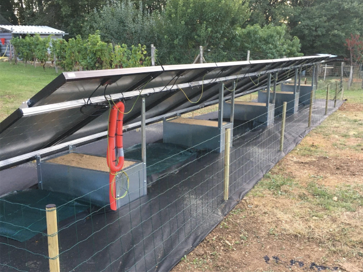

GSE Ground Mount system

This intuitive system from GSE allows Solar PV panels to be fitted quickly, on the ground, without the need for expensive and labour intensive ground works or concrete*.

Quick to install

Simple and safe to install, in less time and with fewer installation costs
Our stocked version of GSE Ground used 2.4m ‘on roof’ rail and is suitable for PV panels of 30mm
Portrait installation in multiple of 2 PV panels
Adjustable tilt, from 7° to 40° (set during installation)
Galvanised steel
Only 8kg (per PV panel) without ballast
Multiple ballast methods (sand, gravel, bricks, blocks etc.)
Compatible with various sizes of PV panels
Easy excel based design tool

As per the ‘syteme ballasting’ instructions on page 16 of the GSE Ground Mount Manual, if your GSE system requires more than the maximum weight per ballast box then the boxes may need to be fixed to the ground (in addition to ballast). All systems should be checked for ballast requirements, and particularly systems in coastal, exposed, and higher altitude areas.

For ballast calculations contact julien.dubuisson@gseintegration.com with:

PV module size
PV module inclination required in °
Exact location of the installation (postal code / Eircode).

Ballast used should be as per the manual, it is also important that the ballast is not loose inside the ballast box.

Installers can work out their bill of materials, dimensions and spacing using the GSE dimensioning tool: GSE GROUND SYSTEM – info and dimensioning tool

https://www.gseintegration.com/en/solutions/gse-ground-system/

*Subject to a ballast calculation.

Parts, with GSE article numbers, and Rexel Ireland part numbers:

MOUNTING ACCESSORY FOR AC/DC ISOLATOR etc	ART101525	7004213
FRONT AND BACK SIDE OF THE BOX BASE (1MM) V2	ART102852	7004214
RIGHT AND LEFT SIDE OF THE BOX BASE (1MM) V2	ART102859	7004215
BOTTOM OF THE BOX BASE (THICKNESS 1MM) V2	ART102866	7004216
FRONT FIXING OF TRY SQUARE – VIEW Z PROFILE (3MM) (front bracket)	ART100002	7004217
BACK FIXING OF TRY SQUARE – VIEW Z PROFILE TOP PART (3MM) (back bracket)	ART100036	7004218
CORNER PIECE L (2mm) FIXED LENGTH=550MM V2	ART102873	7004219
CORNER PIECE L (2mm) ADJUSTABLE LENGTH=1233MM V2	ART102880	7004220
M10 SCREW & WASHER – Junct/Bracket fix – GSE GM	ART100938	7004223
M10 NUT FOR M10 SCREW – GSE GM	ART100213	7004224
M6 SCREW & WASHER – CORNER FIXATION – GSE GM	ART100125	7004227
M6 NUT FOR M6 SCREW – GSE GM	ART101184	7004228
CORROSION PROTECTION SPRAY 400ML – GSE	ART101025	7004229
ON ROOF type – RAIL 40X60 – 2.40M – GSE (with end caps)	ART104707	7004230
ON ROOF type – RAIL CONNECTOR + 4 SCREWS – GSE	ART105568	7004231
ON ROOF – DOUBLE CLAMP – 30/40MM – BLACK – GSE (Mid Clamp)	ART101240	7004232
ON ROOF – SINGLE CLAMP – 30MM – BLACK – GSE (End Clamp)	ART104665	7004233
